The manager of your vital PC components
If the CPU is the brain of the PC, consider the computer motherboard to be the rest of the central nervous system. By housing and connecting all of your PC’s vital components, the motherboard helps all of these parts communicate with one another to ensure reliable operation of the PC. Depending on the form factor, various boards will have different I/O (USB ports, Video, LAN, ect), support different numbers and types of PCIe devices, and handle different quantities and speeds of RAM, so make sure you’re picking a board that meets your needs of today as well as potential future expansion.
Learn more about the various motherboard options we offer below.
Select motherboard

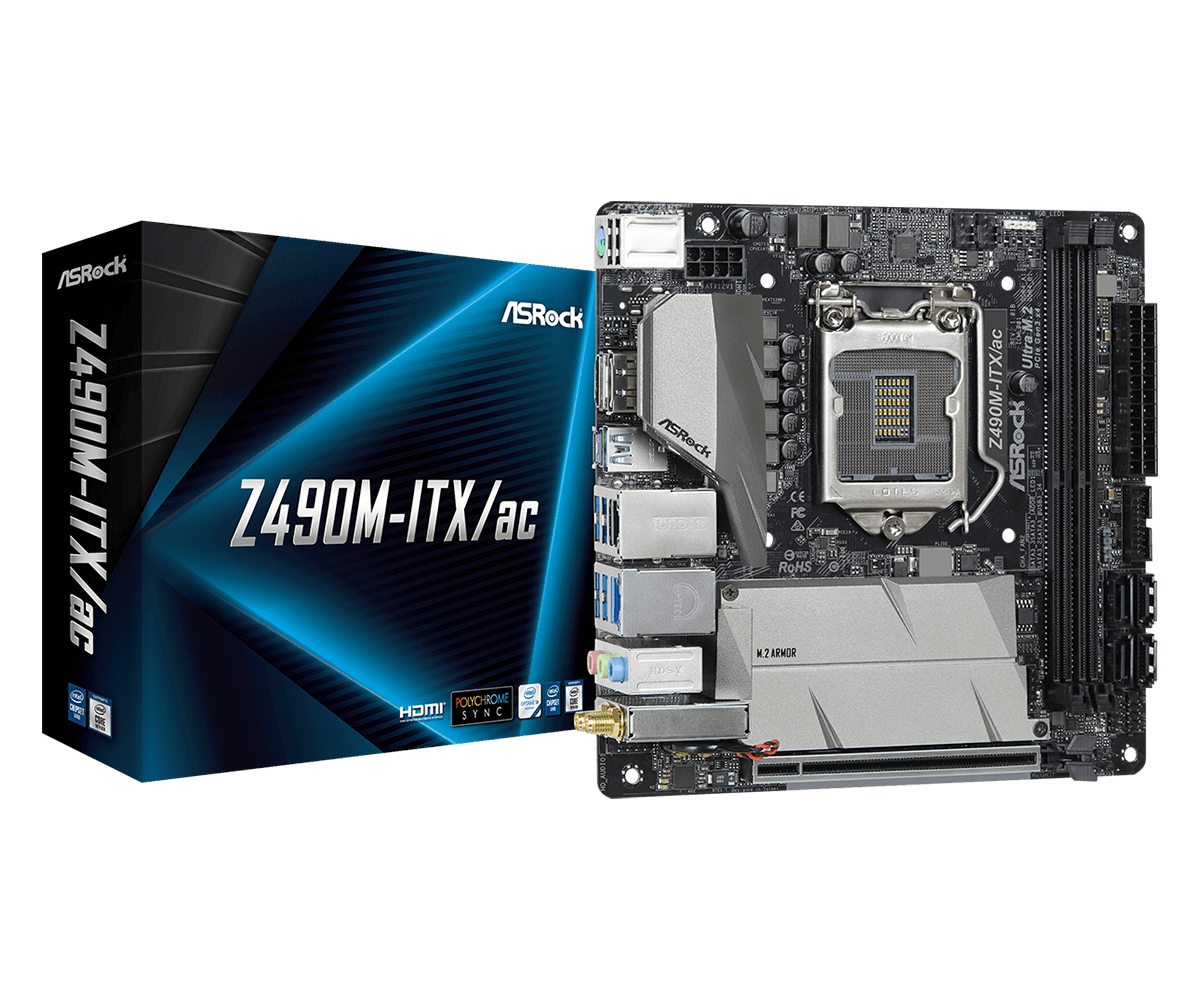

Asrock Z490M-ITX/AC
The Asrock ™ Z490M-ITX motherboard is equipped with the Z490 platform which supports Intel ® 8th generation Core™ processors' LGA 1151 socket. It's compatible with both 8th and 9th gen Intel® Core™ CPUs. This motherboard features Dual M.2 sockets, integrated 802.11ac WiFi and Ethernet RJ-45 port for 10Gb/s link speeds, Intel Gigabit LAN and offers extended BIOS compatibility.
System Recommendations
Asrock Z490M-itx Motherboard has only two built-in pcie x16 slots to widen the bandwidth for graphic card, but also can be loaded with any pci-e x1 or pci express x1 or regular PCI interface card. It's a good choice for customers who'd like to spend less on the motherboards.
Motherboard Specifications
| Model | Asrock Z490M-ITX/ac |
|---|---|
| Socket | 1200 |
| Chipset | Z490 |
| Memory Support | DDR4 up to 4400 |
| Expansion Slots | 1x PCI Express 3.0 |
| Storage | 1 x PCI Express 3.0 x16 4 x SATA3 6.0 Gb/s |
| LAN | Dragon RTL8125BG |
| Audio | Realtek ALC1200 |
| USB | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) |
| Rear I/O | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|---|
| Internal I/O | 1 x RGB LED Header 1 x Addressable LED Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Dimensions | 6.7-in x 6.7-in |

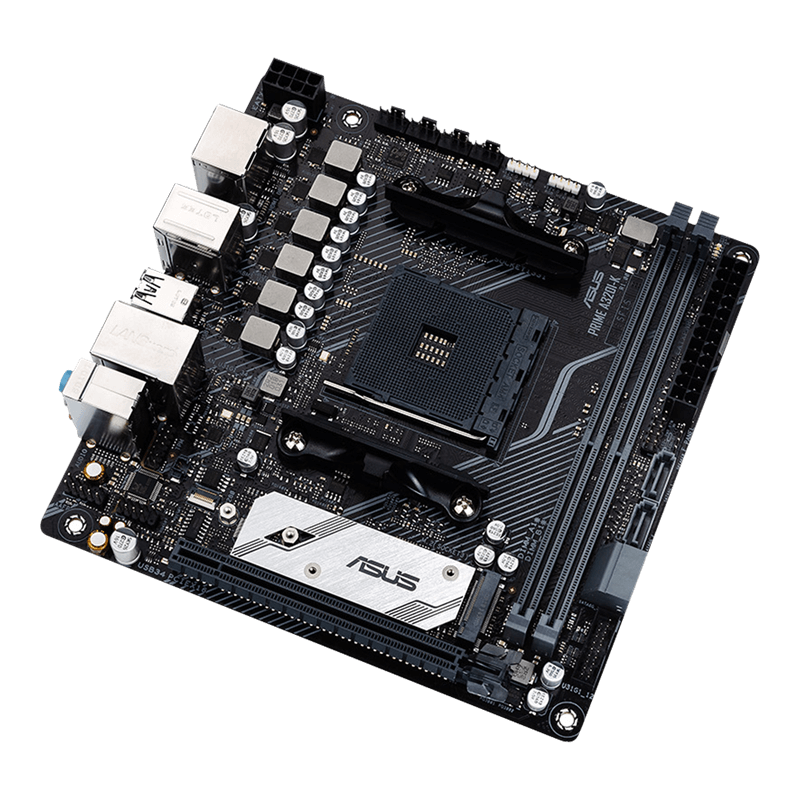

Asus A320IK ITX
The Asus A320iK motherboard is a total solution for Small Business Server, Multimedia Desktop PC, Medical PC and other customer systems that make up the ASUS Eee PC series. This Board features the Intel Socket 1155 processor support and Intel integrated graphics with 64MB memory on the FSB, The board is designed to support the Intel Core 2 Quad/Duo/Solo processors, LGA 1155 chipsets with Intel H61 Express chipset; Q67 Express chipsets.
System Recommendations
The Asus A320IK ITX Motherboard is ideal for your compact yet zesty HTPC and Mini PC projects. This motherboard features the Intel Socket 1151 processor along with two RAM slots that can support a maximum of 32GB of DDR4 memory.
Motherboard Specifications
| Model | Asus A320IK ITX |
|---|---|
| Socket | AM4 |
| Chipset | AMD A320 |
| Memory Support | DDR4 up to 3600 |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x16 |
| Storage | 1 x M.2 Socket 3 4 x SATA 6Gb/s |
| LAN | Realtek RTL8111H |
| Audio | Realtek ALC887 |
| USB | 4 x USB 3.1 Gen 1 port |
| Rear I/O | 1 x PS/2 keyboard/mouse combo ports 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) ports 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) |
|---|---|
| Internal I/O | 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) supports additional 2 USB 3.1 Gen 1 ports (19-pin) 1 x USB 2.0 connector(s) supports additional 4 USB 2.0 ports 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM header 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) |
| Dimensions | 6.7-in x 6.7-in |

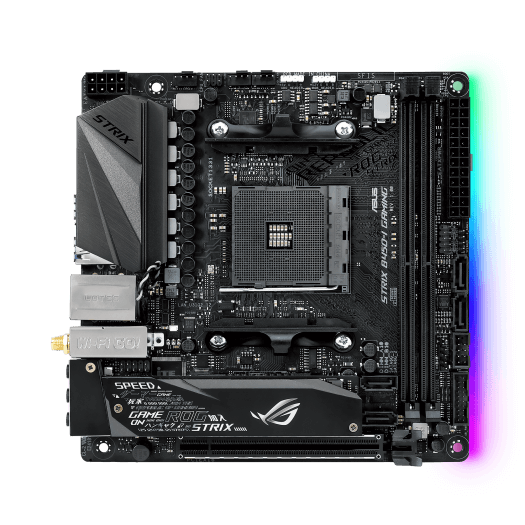

Asus ROG STRIX B450-I GAMING
Go beyond the norm with the ASUS B450M-I motherboard. Designed to fit in small form factor chassis, this ITX motherboard has powerful features that are suited for gaming and entertainment, including integrated 5G Wi-Fi and dual M.2 slots for high-speed SSDs.
System Recommendations
Built for the DIY PC enthusiast with elegant styling and sophisticated elements, the ASUS B450-I motherboard is engineered to provide remarkable performance. It features advanced cooling and networking options, as well as built-in enhancements that protect your investment. Whether you're building your first powerhouse or looking to upgrade an older PC, the ASUS B450-I Motherboard is a great choice.
Motherboard Specifications
| Model | Asus ROG STRIX B450-I GAMING |
|---|---|
| Socket | AM4 |
| Chipset | B450 |
| Memory Support | DDR4 up to 3600 |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 |
| Storage | 2 x M.2 Socket 3 4 x SATA 6Gb/s |
| LAN | Intel I211-AT |
| Audio | ROG SupremeFX8 |
| USB | 2 x USB 3.1 Gen 2 port(s) 4 x USB 3.1 Gen 1 |
| Rear I/O | 2 x USB 3.1 Gen 2 (red)Type-A, 3 x LED-illuminated audio jacks 4 x USB 3.1 Gen 1 (blue) , 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2) 4 x USB 3.1 Gen 1 (blue) 1 x LAN (RJ45) port(s) 1 x HDMI |
| Internal I/O | 1 x CPU Fan connectors ( x 4-pin) 1 x Chassis Fan connectors ( x 4-pin) 1 x AIO_PUMP connector ( x 4-pin) 1 x Aura RGB Strip Header(s) 1 x 8-pin EATX 12V Power connector 1 x USB 2.0 connectors support(s) additional 2 USB 2.0 port(s) 1 x Aura Addressable Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connectors support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x Thermal sensor connector 1 x Speaker connector 1 x Thermal sensor connectors 1 x System panel connector 4 x SATA 6Gb/s connectors 1 x 24-pin EATX Power connectors 1 x Front panel audio connectors (AAFP) 1 x Clear CMOS jumper(s) |
|---|---|
| Dimensions | 6.7 inch x 6.7 inch |

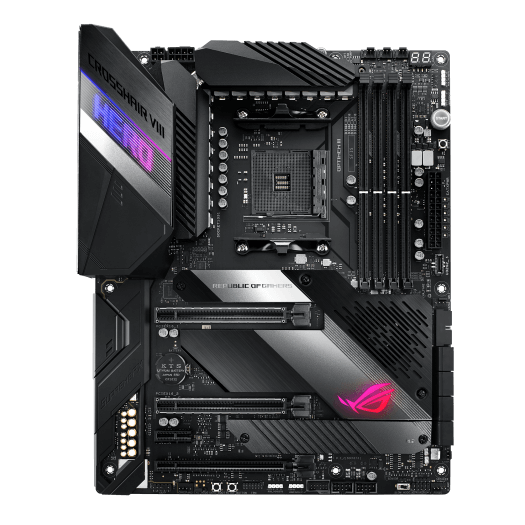

Asus Crosshair VIII Hero X570
The all-new Crosshair VIII Hero is the 2 nd generation of the popular X570 chipset. It comes with all new features such as enhanced overclock settings, 5G WiFi, and added M.2 support. Powered by AMD's 8-Core Pinnacle Ridge Processor called Ryzen 2700x that runs faster that the previous generation by 19%.
System Recommendations
The Crosshair VIII Hero has a curated set of fun and simple overclocking features for novice and experienced users alike. This motherboard is great for the power user who needs uncompromised performance.
Motherboard Specifications
| Model | Asus Crosshair VIII Hero X570 |
|---|---|
| Socket | AM4 |
| Chipset | X570 |
| Memory Support | DDR4 up to 4800 |
| Expansion Slots | 3 PCIe 4.0, 3 PCIe 3.0 |
| Storage | 3x M.2, 8 x SATA |
| LAN | Realtek RTL8125-CG 2.5G LAN |
| Audio | ROG SupremeFX8 |
| USB | 4 x USB 3.2 6 x USB 3.2 4 x USB 2.0 |
| Rear I/O | 1 x USB BIOS FlashBack Button 5 x Gold-plated audio jacks 1 x Clear CMOS button 8 x USB 3.2 Gen 2 (up to 10Gbps) ports 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 1 x Optical S/PDIF out |
| Internal I/O | 1 x 4-pin EATX 12V Power connector 1 x 8-pin EATX 12V Power connectors 1 x LN2 Mode jumper(s) 1 x Start button 1 x TPM connector(s) 1 x H_AMP fan connector 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Safe Boot button 1 x ReTry button 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Speaker connector 2 x Addressable Gen 2 header(s) 1 x W_PUMP+ connector 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 2 x Aura RGB Strip Headers 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) |
|---|---|
| Dimensions | 12 inch x 9.6 inch |

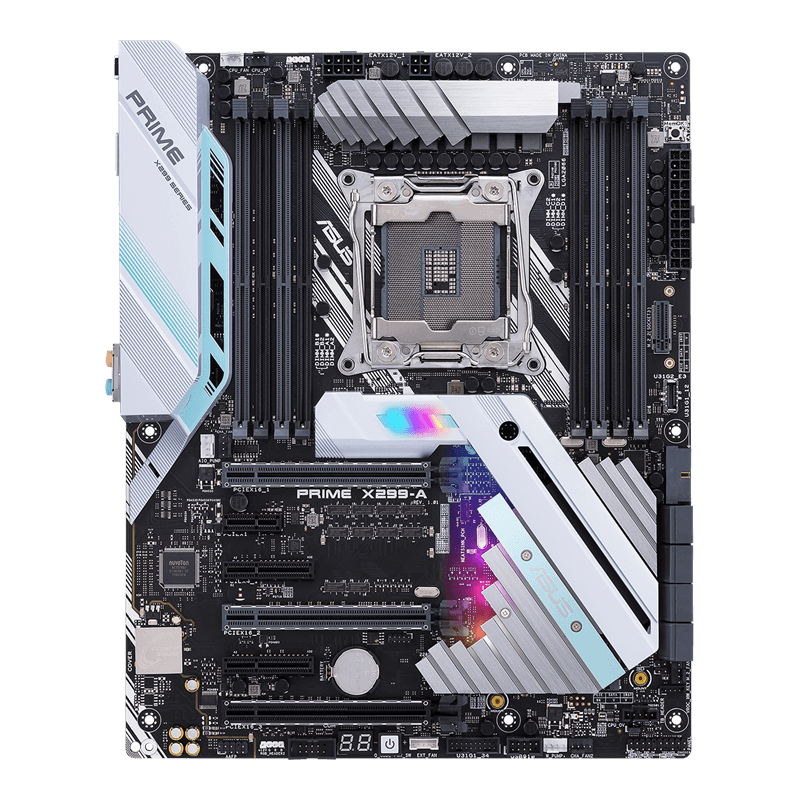

Asus Prime X299-A
Upgrade your experience with your new Asus Prime X299-A Motherboard. This motherboard features ASUS OptiMem and 5X Protection III, which utilizes the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard. The EZ DIY feature allows for an easy installation process. Simply layout your components and follow a few prompts to install them correctly.
System Recommendations
The Asus Prime X299-A motherboards are a complete solution with an uncompromised combination of features, technology, and aesthetics. It is designed for serious PC enthusiasts, and gaming at its finest.
Motherboard Specifications
| Model | Asus Prime X299-A |
|---|---|
| Socket | 2066 |
| Chipset | X299 |
| Memory Support | DDR4 up to 4266 |
| Expansion Slots | 3 x PCIe 3.0/2.0 x16 2 x PCIe 3.0 x4 1 x PCIe 3.0/2.0 x1 |
| Storage | 1 x M.2 x4 Socket 3 1 x M.2 x4 Socket 3 8 x SATA 6Gb/s ports |
| LAN | Intel I219V, 1 x Gigabit LAN Controller |
| Audio | Realtek S1220A 8-Channel |
| USB | 1 x USB 3.1 Gen 2 port 2 x USB 3.1 Gen 2 ports 8 x USB 3.1 Gen 1 ports 4 x USB 2.0 ports |
| Rear I/O | 1 x LAN (RJ45) port 2 x USB 3.2 Gen 2 Type-A + USB Type-CTM, 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack Button(s) |
| Internal I/O | 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 2 front panel connector 1 x CPU_OV jumper |
|---|---|
| Dimensions | 12” x 9.6” |

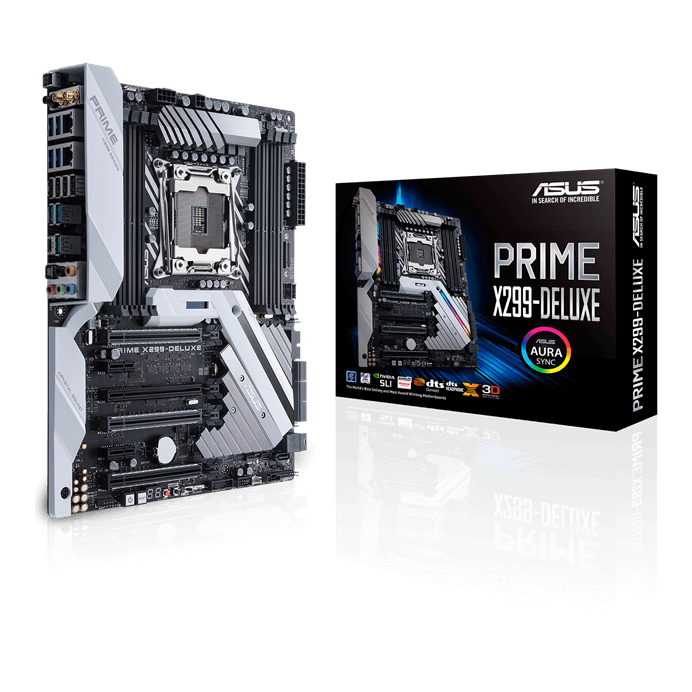

Asus Prime X299-A Deluxe
The Prime X299-A Deluxe is a full-featured motherboard with great aesthetics that you can show off at LAN parties. Its efficient and durable power delivery ensures stronger output with less heat and noise.
System Recommendations
The Prime X299-A is built to last and ready for anything, thanks to its ruggedly crafted all-metal exterior and robust PCIe armor. Factor in multiple RGB headers and sync options, plus dual M.2, front panel USB 3.1 and both standard and generous PSU venting; you'll see it's more than just a pretty face.
Motherboard Specifications
| Model | Asus Prime X299-A Deluxe |
|---|---|
| Socket | 2066 |
| Chipset | X299 |
| Memory Support | DDR4 up to 4266 |
| Expansion Slots | 3 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x1 2 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x1 |
| Storage | 1 x M.2 x4 Socket 3 1 x M.2 x4 Socket 3 8 x SATA 6Gb/s ports |
| LAN | Aquantia AQC111C 5G LAN |
| Audio | Realtek S1220A |
| USB | 2 x USB 3.1 Gen 2 ports 1 x USB 3.1 Gen 2 front panel connector port 5 x USB 3.1 Gen 1 ports 4 x USB 2.0 ports |
| Rear I/O | 2 x Thunderbolt 3 ports TypeC 2 x DisplayPort IN ports for Thunderbolt™ 3 1 x LAN (RJ45) ports 4 x USB 3.1 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi GO! module 1 x AQC-111C 5G LAN port |
| Internal I/O | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) supports additional 4 USB 3.1 Gen 1 ports 1 x USB 2.0 connector(s) supports additional 2 USB 2.0 ports 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Node Connector(s) 1 x USB BIOS Flashback® button(s) 1 x USB 3.1 Gen 2 front panel connector 1 x Q-Code |
|---|---|
| Dimensions | 12” x 9.6” |

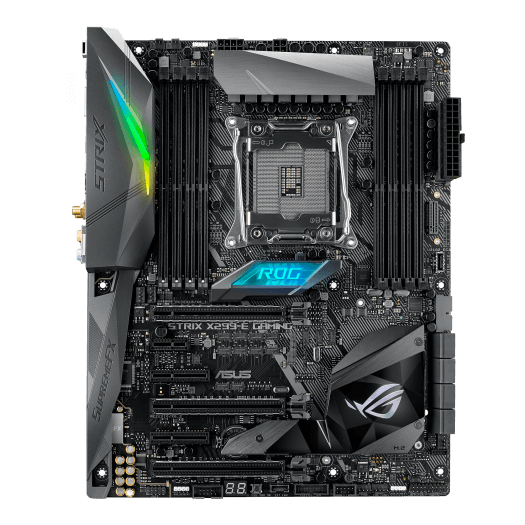

Asus ROG Strix x299-E
Designed to get the most from Intel Core X-series LGA2066 processors and support all the features of the Intel X299 platform, the Strix X299-E Gaming motherboard provides the right tools to help give your build a boost. With support for an advanced audio subsystem, advanced connectivity options and fast USB 3.1 Gen 2 ports, you'll have all you need to make an impression with your new rig! Asus ROG Strix x299-E Gaming Motherboard
System Recommendations
Strix x299-E Gaming is the perfect foundation for your power-hungry system. With support for the latest Intel processors, up to 128GB of DDR4 RAM, and multiple expansion cards, there's little room left for you to build on it.
Motherboard Specifications
| Model | Asus ROG Strix x299-E |
|---|---|
| Socket | 2066 |
| Chipset | X299 |
| Memory Support | DDR4 up to 4133 |
| Expansion Slots | 3 x PCIe 3.0/2.0 x16 3 x PCIe 3.0/2.0 x16 2 x PCIe 3.0 x4 |
| Storage | 1 x M.2 Socket 3 1 x M.2 Socket 3 8 x SATA 6Gb/s |
| LAN | Intel I219V |
| Audio | SupremeFX8 |
| USB | 8 x USB 3.1 Gen 1 ports 4 x USB 2.0 ports 1 x USB 3.1 Gen 2 front panel connector port 2 x USB 3.1 Gen 2 ports |
| Rear I/O | 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS) 2 x USB 2.0 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM, 1 x USB BIOS Flashback Button 4 x USB 3.1 Gen 1 (blue) 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O | 1 x Front panel connector(s) 1 x CPU_OV jumper 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x M.2_FAN connector 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x Aura Addressable Strip Header(s) 1 x VROC_HW_Key 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 3.1 Gen 2 front panel connector 1 x Power-on button(s) 1 x AAFP connector 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x Thermal sensor connector(s) 2 x Aura RGB Strip Headers 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 1 x AIO_PUMP connector 1 x COM port(s) connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) |
|---|---|
| Dimensions | 12” x 9.6” |

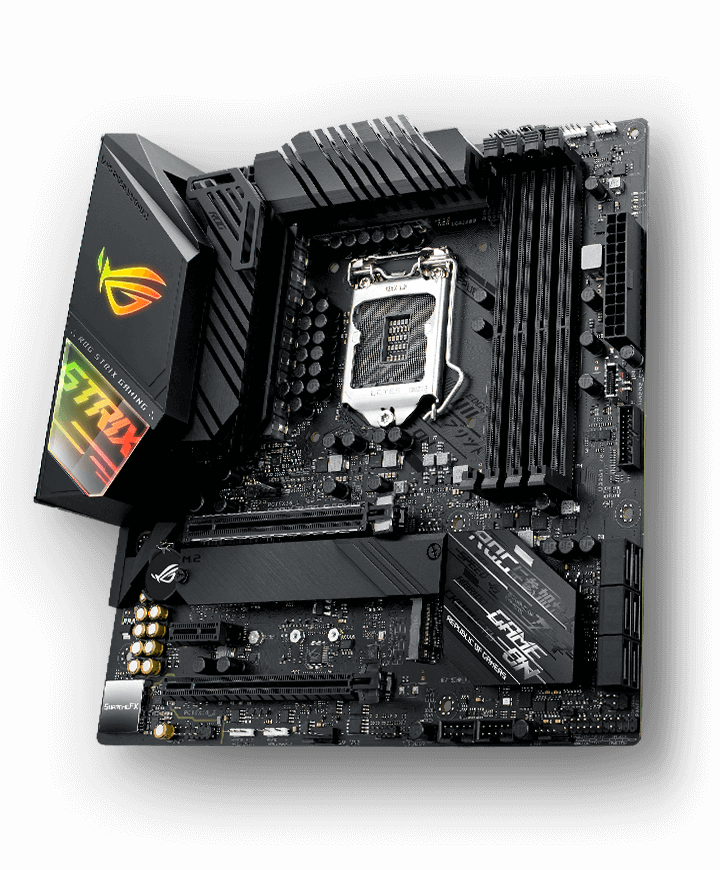

Asus ROG Strix Z490 G Gaming
This ASUS ROG Strix Z490 G Gaming motherboard supports 8th Gen Intel® Core™ processors, the latest revolution in high-performance desktop processors. This new hybrid digital power delivery to the CPU, the intelligent turbocharger boost and overclocking gives you the edge to push your performance to extreme levels while gaming.
System Recommendations
ROG Strix Z490-G Gaming is a motherboard noted for its advanced features, extensive capabilities and overall support for the gaming community. With it's ATX form factor and durable construction, advanced cooling features and Intel 4th, 6th Generation processors, the Strix Gaming chipset boasts enough power to handle anything you throw at it.
Motherboard Specifications
| Model | Asus ROG Strix Z490 G Gaming |
|---|---|
| Socket | 1200 |
| Chipset | Z490 |
| Memory Support | DDR4 up to 4800 |
| Expansion Slots | 1 x PCIe 3.0 x16 (max at x4 mode) 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2_1 socket 3 1 x M.2_2 socket 3 6 x SATA 6Gb/s ports |
| LAN | Intel I225-V 2.5Gb Ethernet |
| Audio | ROG SupremeFX8 |
| USB | 1 x USB 3.2 Gen 2 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 1 ports(2 x Type-A) 2 x USB 3.2 Gen 2 ports(1 x Type-A +1 x USB Type-C) 2 x USB 2.0 ports 4 x USB 2.0 ports |
| Rear I/O | 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) 1 x Intel® I225-V 2.5Gb Ethernet 1 x USB BIOS FlashBack™ Button(s) 4 x USB 3.2 Gen 1 Type-A 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks |
| Internal I/O | 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x CPU OV 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |
|---|---|
| Dimensions | 9.6” x 9.6” |
Shop Asus ROG Strix Z490 G Gaming

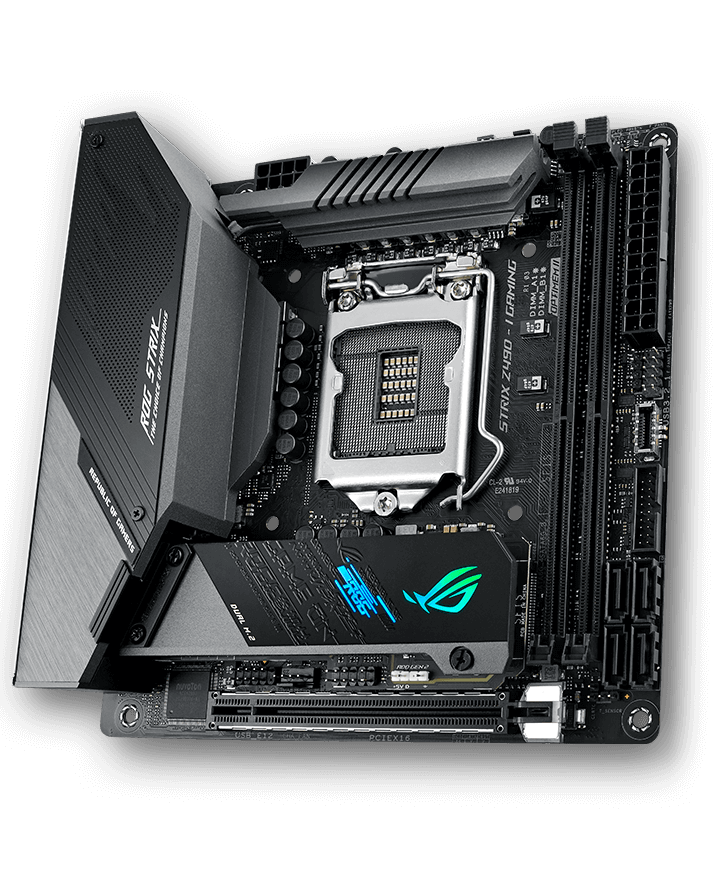

Asus ROG Strix Z490-I Gaming
A complete and versatile all-round gaming solution, ROG Strix Z490-I Gaming marries Intel's 10th generation Core processors with a dedicated graphics card to offer smooth 4K gameplay. It has all the power you need for gaming or creative projects and the smart design you'd expect from Asus.
System Recommendations
ROG Strix Z490-I Gaming is sleek ITX gaming motherboard with the features you need for great gaming experiences, including 5-Way Optimization and SupremeFX audio. With bold aesthetics and class-leading performance, its a dominant force in modern gaming.
Motherboard Specifications
| Model | Asus ROG Strix Z490-I Gaming |
|---|---|
| Socket | 1200 |
| Chipset | Z490 |
| Memory Support | DDR4 up to 4800 |
| Expansion Slots | 1 x PCIe 3.0 x16 |
| Storage | 1 x M.2_2 socket 3 4 x SATA 6Gb/s |
| LAN | Intel I225-V |
| Audio | ROG SupremeFX8 |
| USB | 4 x USB 3.2 Gen 2 ports(3 x Type-A +1 x USB Type-C) 2 x USB 3.2 Gen 1 ports(2 x Type-A) 2 x USB 2.0 ports(2 x Type-A) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports |
| Rear I/O | 1 x Intel I225-V 2.5Gb Ethernet 1 x USB BIOS FlashBack Button(s) 3 x LED-illuminated audio jacks 1 x DisplayPort 1 x HDMI 1 x ASUS Wi-Fi Module |
|---|---|
| Internal I/O | 1 x USB 3.2 Gen 1 connectors support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 1 x CPU Fan connectors 1 x Chassis Fan connectors 1 x AIO_PUMP connector 1 x Aura RGB Strip Header 1 x Addressable Gen 2 header(s) 1 x 24-pin EATX Power connectors 1 x 8-pin ATX 12V Power connectors 1 x Front panel audio connectors (AAFP) 1 x Internal speaker connectors 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x Thermal sensor connector 1 x USB 2.0 connectors supports additional 2 USB 2.0 port(s) |
| Dimensions | 6.7" x 6.7" |
Motherboard F.A.Q.
What’s a motherboard’s “form factor” mean?
The form factor refers to the physical size of the board. ATX is considered “standard” with mATX and mITX smaller and eATX larger. When choosing a board, make sure the form factor is a fit for the case you’re looking to use.
What’s a chipset?
The chipset is embedded onto the motherboard to control communication between CPU, RAM, storage, and peripherals. Since it’s CPU specific, chipset is a great indicator for whether a board supports Intel or AMD processors and is usually used as a part of a boards model nomenclature.
Does a more expensive board = better?
Sometimes, but not always. Higher quality boards generally have better heatsinks, VRMs, and capacitors, meaning they may be more reliable long term, especially in higher demand applications. More expensive boards will also typically have more I/O port options like USB and video outs.
Which Motherboard is best for me?
Choosing the right motherboard depends on your specific usage needs. For direct assistance, give our sales team a call at 804-419-0900.
